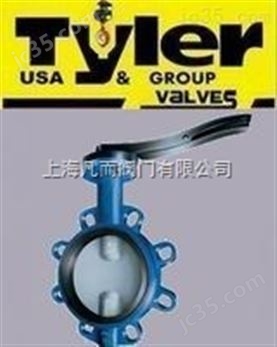

美國泰樂TYLER進口橡膠密封凸耳式蝶閥

產品描述-

美國泰樂TYLER進口橡膠密封凸耳式蝶閥又名支耳式蝶閥、單夾式蝶閥,閥座為橡膠,啟閉件為一個圓盤形閥瓣,閥軸帶動閥瓣圍繞閥座旋轉90度角來達到開啟與關閉的一種閥門，在管道上主要起截斷和調節作用。

產品特點-

軟密封·免維護·低流阻·流通性能好·長壽命·低扭矩·用途廣·無泄漏·開關迅速;

應用范圍-

安裝位置:通常用在管路末端做末端閥，由于其穩定的連接性，也常用于熱變化頻繁的管路;

適用介質:污水、高純水、工業水、空氣、天然氣、煤氣、蒸汽、油、紙漿、啤酒、粉末等;

應用行業:石油、化工、食品、醫藥、造紙、水電、船舶、給排水、冶金、消防管道、供暖等系統;

技術參數-

連接方式:單夾式;

傳動方式:手動DN50-DN150、蝸輪傳動DN50-DN600、氣動DN50-DN600、電動DN50-DN600;

工作壓力:PN0.6、PN1.0、PN1.6MPA;

介質溫度:－5℃-100℃-150℃;

閥體材質:鑄鐵、球墨鑄鐵、碳鋼、不銹鋼;

密封材質:丁qing橡膠、天然橡膠、氟橡膠、三元乙丙;

閥板材質:球墨鑄鐵板[電鍍]、鑄鋼板[電鍍]、304不銹鋼板、316不銹鋼板、合金鋼、鋁青銅;

閥桿材質:碳素鋼、不銹鋼304、不銹鋼316、不銹鋼416;

American tyletyler imported rubber seal lug butterfly valve
Product description -
American wessing TYLER import rubber lug type butterfly valve and lug butterfly valves, single clip-on butterfly valve, valve seat for rubber, open-close part for a disc disc, valve spindle drive disc revolve around the seat Angle of 90 degrees to achieve a kind of open and close the valve, truncation and regulating role mainly in the line.
Product features -
Soft seal · free maintenance · low flow resistance · long life · low torque · wide use · no leakage · fast switch;
Application scope -
Installation position: the terminal valve is usually used at the end of the pipe, which is also used for the frequent hot change of the pipe due to its stable connectivity.
Applicable media: sewage, high purity water, industrial water, air, natural gas, gas, steam, oil, paper pulp, beer, powder, etc.
Application industry: petroleum, chemical industry, food, medicine, paper making, water and electricity, ship, water supply and drainage, metallurgy, fire control piping, heating system;
Technical parameters -
Connection mode: single clip;
Transmission mode: manual dn50-dn150, worm gear drive DN50- DN600, pneumatic DN50- DN600, electric dn50-dn600;
Work pressure: PN0.6, PN1.0, PN1.6MPA;
Medium temperature: - 5 ℃ to 100 ℃ -- 150 ℃;
Body material: cast iron, nodular cast iron, carbon steel, stainless steel;
Sealing material: nitrile rubber, natural rubber, fluoro rubber, tri-ethyl propylene;
Valve plate quality: spheroidal cast iron plate [plating], cast steel plate [plating], 304 stainless steel plate, 316 stainless steel plate, alloy steel, aluminum bronze;
Stem material: carbon steel, stainless steel 304, stainless steel 316, stainless steel 416; Open and close a valve that rotates 90 degrees around its axis in the valve body to achieve the purpose of opening, throttling, or regulation in the pipeline.
Product features -
Soft seal · free maintenance · low flow resistance · good performance · long life · low torque · wide use; no leakage;
Technical parameters -
Connection mode: RF flange, American standard flange, daily standard flange;
Transmission mode: manual dn50-dn150, worm gear drive dn50-dn600, pneumatic dn50-dn600 optional single action or double action, regulation, electric dn50-dn600;
Work pressure: PN0.6, PN1.0, PN1.6MPA;
Medium temperature: - 5 ℃ to 100 ℃ to 150 ℃ (can choose materials according to different engineering),
Body material: cast iron, nodular cast iron, carbon steel, stainless steel;
Nitrile rubber sealing material: [oil], epdm/ageing resistance, natural rubber/high elasticity, neoprene/light resistance, aging resistance, silicone rubber [temperature], fluorine rubber/high temperature resistant, corrosion resistant ptfe, [high temperature resistant, corrosion resistant]
Valve plate quality: spheroidal cast iron plate [plating], cast steel plate [plating], 304 stainless steel plate, 316 stainless steel plate, alloy steel, aluminum bronze;
Stem material: carbon steel, stainless steel 304, stainless steel 316, stainless steel 416, double-phase steel [optional]
Application scope -
Middle flange butterfly valve is suitable for the petroleum, chemical, food, medicine, paper making, water and electricity, shipbuilding, water supply and drainage, metallurgy, fire pipeline, heating, the pipeline system, such as drinking water, sewage, high pure water, industrial water, air, gas, coal gas, flue gas, steam, oil, paper pulp, beer, powder and other media.
